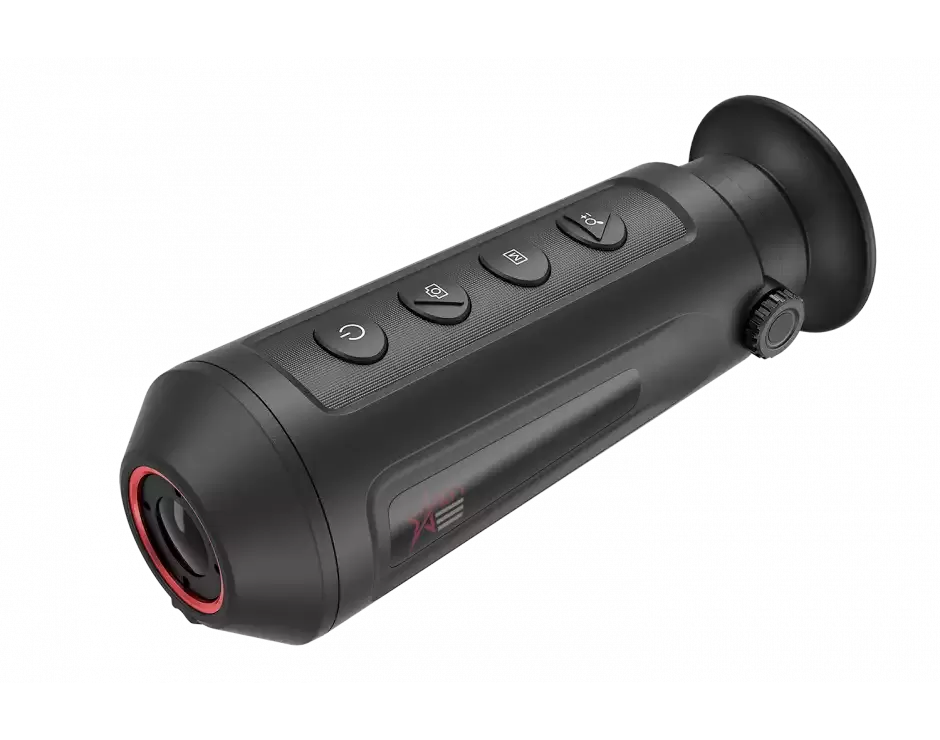

The Taipan handheld observational thermal monocular is
equipped with a 384×288 infrared detector and a 1280×960 LCOS
display. It supports functions of observation, highest temperature
target tracking, distance measurement, Wi-Fi hotspot, and so on.
The high-sensitivity built-in thermal detector provides you with
clear view even in total darkness. The monocular is mainly applied
to scenarios such as patrolling, law enforcement, searching and
rescuing, drug enforcement, anti-smuggling, criminal seizing,
hiking, travel, and hunting, etc.
Warning: California's Proposition 65
FUNCTIONS:
Distance Measurement:
The device realizes distance measurement function after marking
the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot
capturing.
Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters
via APP after being connected to your phone.
- 384×288 resolution, 12 μm, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- 1280 × 960 resolution 0.4-inch LCOS display
- Built-in rechargeable Lithium battery
- More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
- Wi-Fi hotspot
- Type-C interface
- 5-Year warranty
Interface: USB Type-C
Pixel Interval: 12 μm
Multi Language Menu: Yes
Drop Test Height: 1.5 m (4.9 feet)
Digital Magnification: 1.5x - 12x
Detector Type: Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband: 8μm to 14μm
FFC (Flat Field Correction): Auto, Manual, External Correction
Highest Temperature Spot Tracking: Yes
Standby Mode: Yes
Refresh Rate: 50 Hz
Aperture: F1.0
Resolution: 384×288
Detection Range: 710m/yd
NETD: Less than 35 mk (@25°C), F#=1.0
Lens (focal length): 15 mm
Power: 5 VDC/2 A, 1.5 W
Field of view (H × X): 17.5° × 13.1°
Digital Zoom: 2×, 4×, 8×
Monitor: 1280×960, 0.4 inch, LCOS
Imaging Palettes: Black Hot, White Hot, Red Hot, Fusion
Storage: Built-in memory module (8 GB)
Record VideoBuilt-in Memory Module (8 GB): On-Board Video Recording
Capture Snapshot: Yes
Battery Type: Built-in rechargeable Lithium battery
Wi-Fi: Yes
CVBS Output: Yes (via USB)
Battery Operating Time: More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display: Yes
Weight: 290 g (0.64 lb)
Working Temperature/ Humidity: -20°C to 55°C (-4°F to 131°F)
Overall Dimensions: 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
Protection Level: IP67
Magnification: 1.5
